Process Control System PCS7

About PCS7

• Notes on Installations
Operating Systems and Prerequisites Server-(Multi) Client Architecture
• AS: Automation Station
• ES: Engineering Station

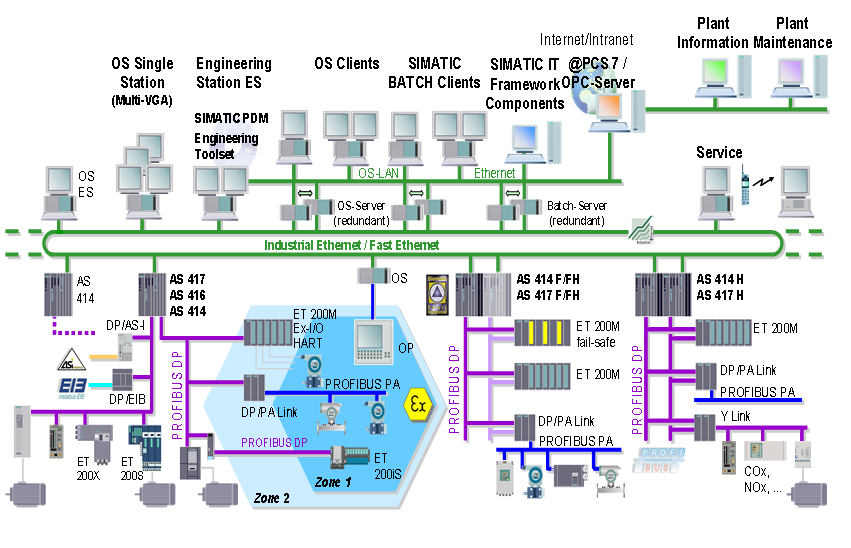

• PCS 7 Stations and Communication
• System Bus (Plant Bus), Terminal Bus and Profibus/Profinet •
OS: Operator Station (Single and Multiuser)

OS SERVER AND SERVER REDUNDANCY WITHIN PCS 7 OS

Setting & startup of OS server-s
• Redundancy principles
• Configuring redundant OS servers Auto Start Runtime

CLIENT-s

• Client architecture
• Client switch-over and permanent operability
• Configuring a client
• Client picture navigation
• Standard server and data from different servers

SERVER-s

• Preparation for OS project download
• Downloading server and client projects
• Downloading using the make function (after making changes) • Full download and download changes and "compile changes" and "compile all" (when to use what)

USER INTERFACE

• Overview Window
• Workspace
• Button Area

SYSTEM OPERATIONS

• Logging into Runtime
• User Rights
Button area functionality - Button Set 1 and Button Set 2
• Exiting Runtime
• Acknowledging Signaling Devices/Alarms
• Language Switch
• Display Video Image
• Displaying the Plant Configuration Picture (Lifebeat Monitoring)
• Selecting a Plant Section
• Navigating through the Picture Hierarchy
• Saving, Recalling and Deleting the Screen Composition
• Displaying Reporting Jobs
• Selecting the User Administrator

GROUP DISPLAY

• Overview and details about Group Display
• Alarm Classes in Group Display: A, W, S, O
• Displaying the Alarm Source
• Hierarchy of the Group Displays

TREND SYSTEM

• "Online Trends" Dialog
• "New Trend Group" Dialog created by the Operator
• "WinCC Online Trend Control Properties" Dialog
• Configuring, Saving and Loading Trend Groups
• Archiving System (Trends from Archives)

MESSAGE SYSTEM

• Message Window how they are built and displayed
• Type od Messages (in German language)
- Prozessmeldungen
- Leittechnikmeldungen
- Bedienmeldungen
- Systemmeldungen
• Displaying Highest Priority Alarms
• Loop-In-Alarm function
• Accustic / Sound Alarms

PROCESS OPERATION AND GRAPHICS PICTURES

• Graphics Pictures
• Picture Selection by Measurement Point
• Picture Selection by Name
• Selecting Graphic Pictures Directly
• Operator Activity in Graphics Pictures
• Overview of Runtime System Button Functionality
• OS-Symbols
Faceplates - Different Views and Parameters for:
- Analog Monitoring
- Binary Monitoring
- Motor
- Valve
- CtrlPID
- Interlocks

SFC Visualisation and SFC Operation in Runtime

Automatic/Manual mode of SFC Operation
SFC Transitions Modes of Operation:
- T
- T and O
- T or O
- T/T and O
